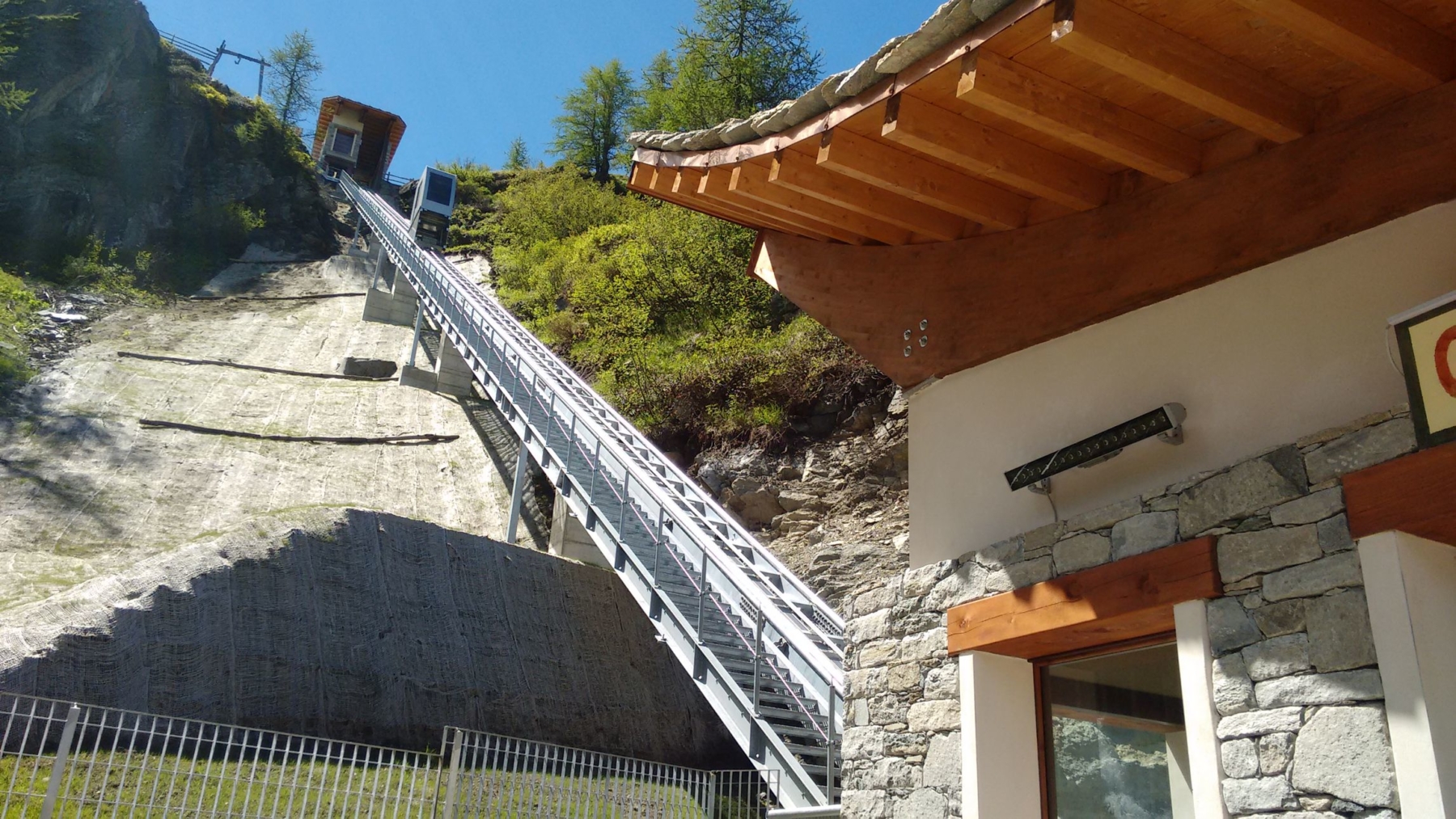

Inclined Lift Conca di Cheneil
I.V.I.E.S. spa, Loc. Crêtaz Boson, Valtournenche, Val d‘Aosta, Italy

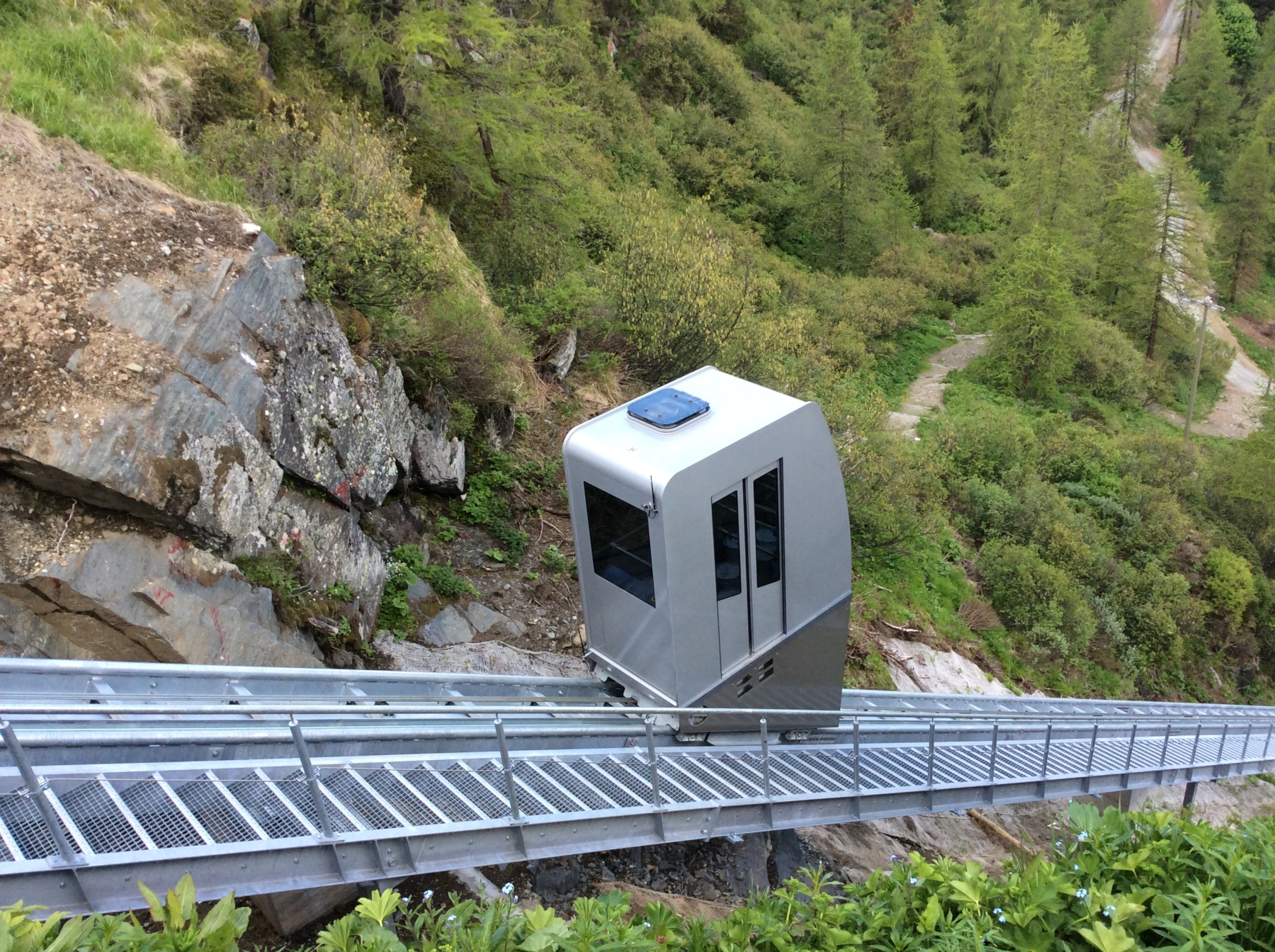

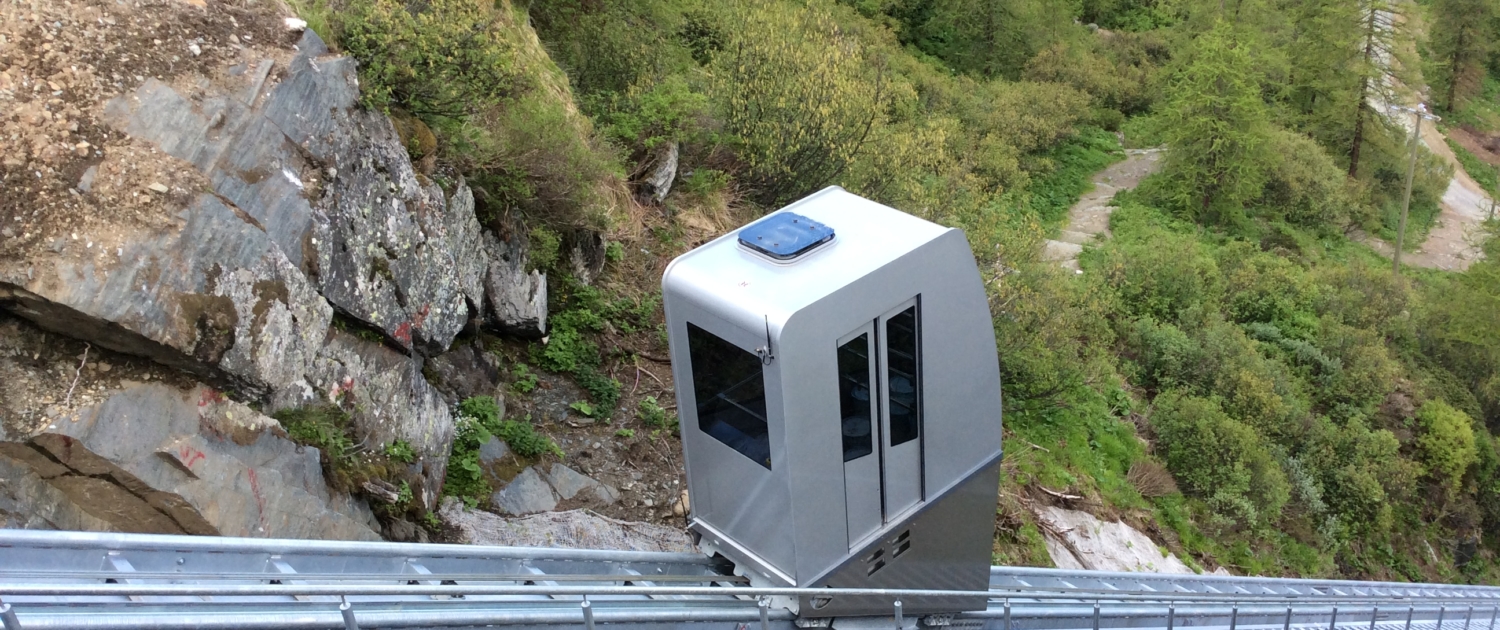

People Mover of the latest iCab® generation:
Enjoyable nature experience in a unique mountain scenery: The inclined lift in Valtournenche, Italy, provides barrier-free access to a spectacular landscape with a view to the highest peaks in the Alps.

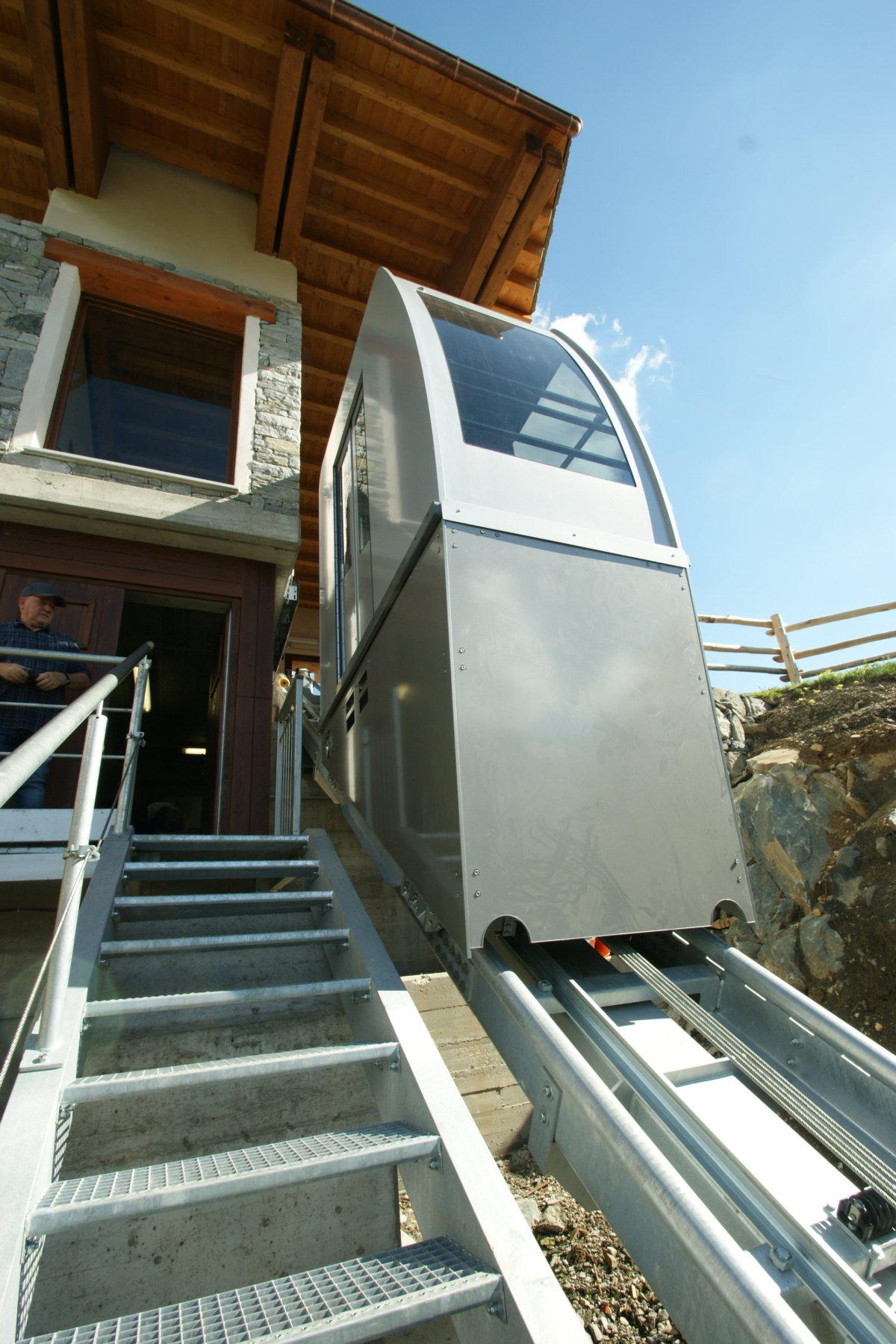

The view can already be enjoyed while being raised comfortably from the hiker’s car park to the Cheneil plateau. From the top station, many hiking trails start and some restaurants and cosy accommodations can be found.
In addition to the hotel and hiking guests, also the owners and hosts of the hotels benefit from the elevator system by a simplified transportation of daily goods towards and from the facilities.
Low costs for personnel, service and operation is a further advantage of the inclined elevator system.
General
Year of Construction: 2015
System: Inclined Lift
Drive: Traction Drive
Topographical Data
Length: 97,9 m
Difference in Level: 53,9 m
Inclination: 33 °
Track
Rail Type: Round Tube dia, 89mm DM
Rail Gauge: 1000 mm
Operating Data
Load Capacity: 8 passenger
Travel Speed: 1,0 m/s
Capacity: ca. 119 pphd (pers./h/direction)
