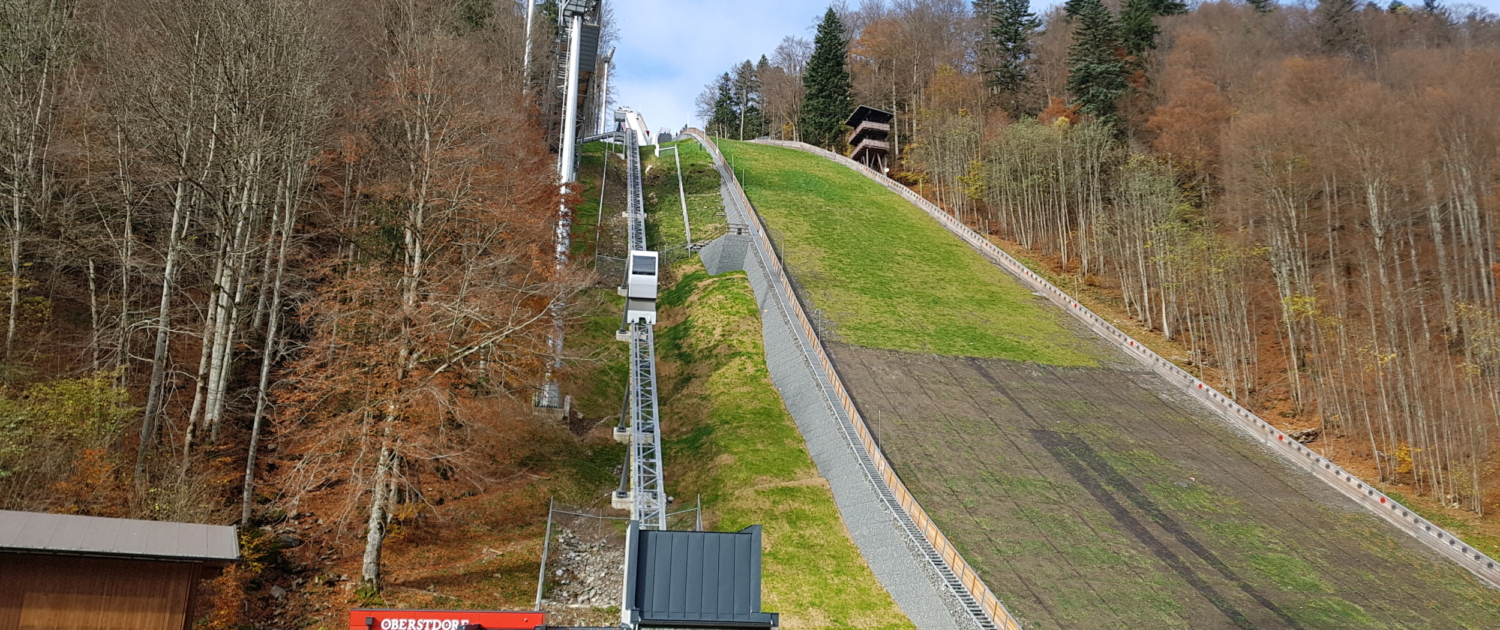

  • Oberstdorf HKS 04 1500x630 - Heini Klopfer Ski-Flying Jump, DE

Inclined Lift Heini Klopfer Ski-Jump

Markt Oberstdorf – Sportstätten Oberstdorf, Germany

As part of the modernization of the Heini-Klopfer ski-flying jump carried out for the 2018 Nordic World Ski Championships, the existing chairlift was replaced by a barrier-free inclined lift and serves one of the largest ski jumping facilities in the world.

This lift also allowed moving the “athletes’ village” for the jumping competitions from top to the valley.

The Heini-Klopfer inclined elevator is already the third inclined lift from ABS at the ski jumping facilities in Oberstdorf.

The installation plays an important role in the tourist use of the ski jumping facility and as a climbing aid to the hiking trails around the Freibergsee.

General

Year of Construction: 2017
System: Inclined Lift
Drive: Traction Drive

Topographical Data

Length: 282 m
Difference in Level: 124,5 m
Inclination: 16,55 – 34,55 °

Track

Rail Type: HEA-Beams
Rail Gauge: 1.400 mm

Operating Data

Load Capacity: 50 passenger
Travel Speed: 2 m/s
Capacity: ca. 338 pphd (pers./h/direction)

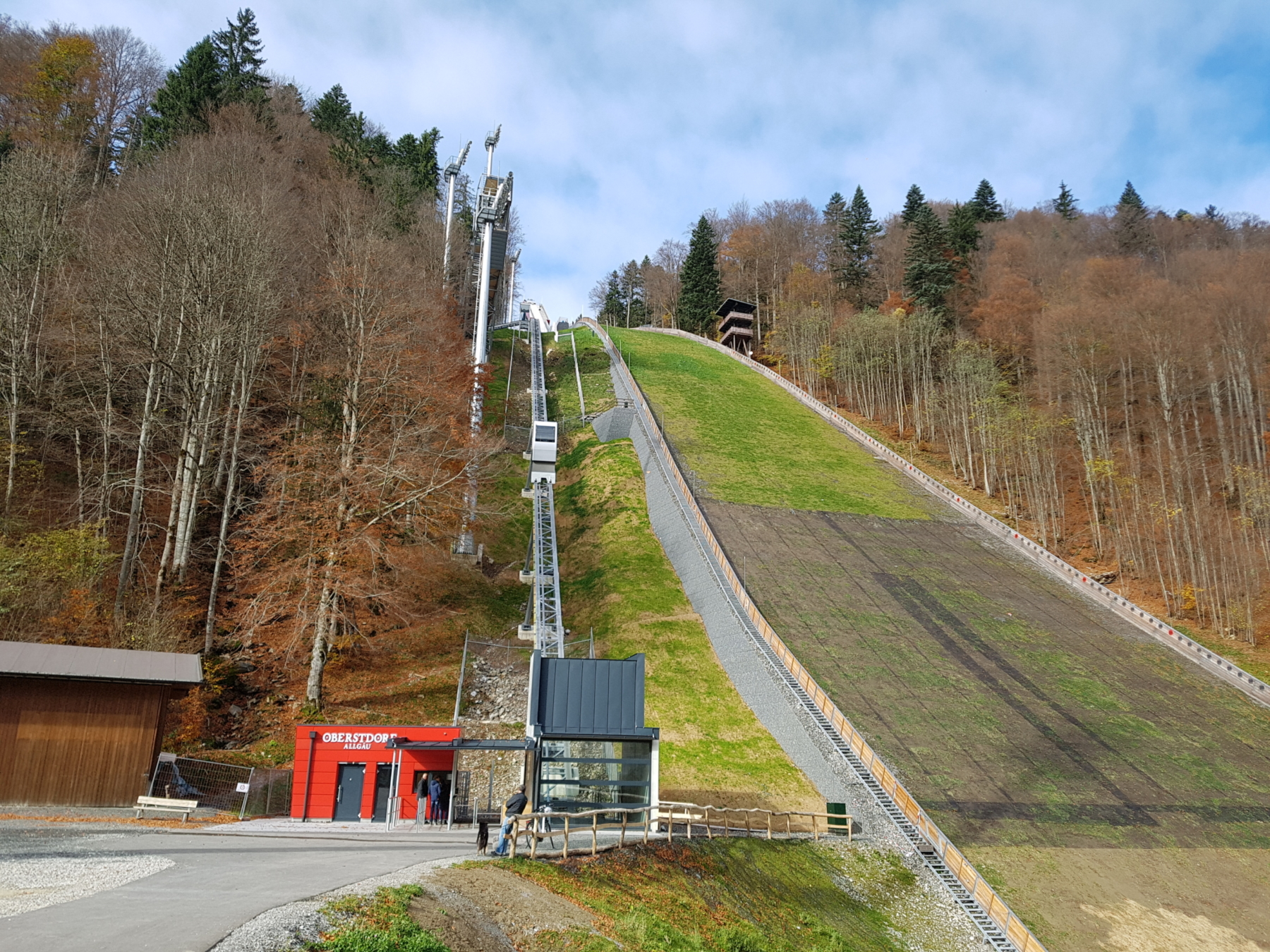

Oberstdorf HKS 04 900x675 - Heini Klopfer Ski-Flying Jump, DE

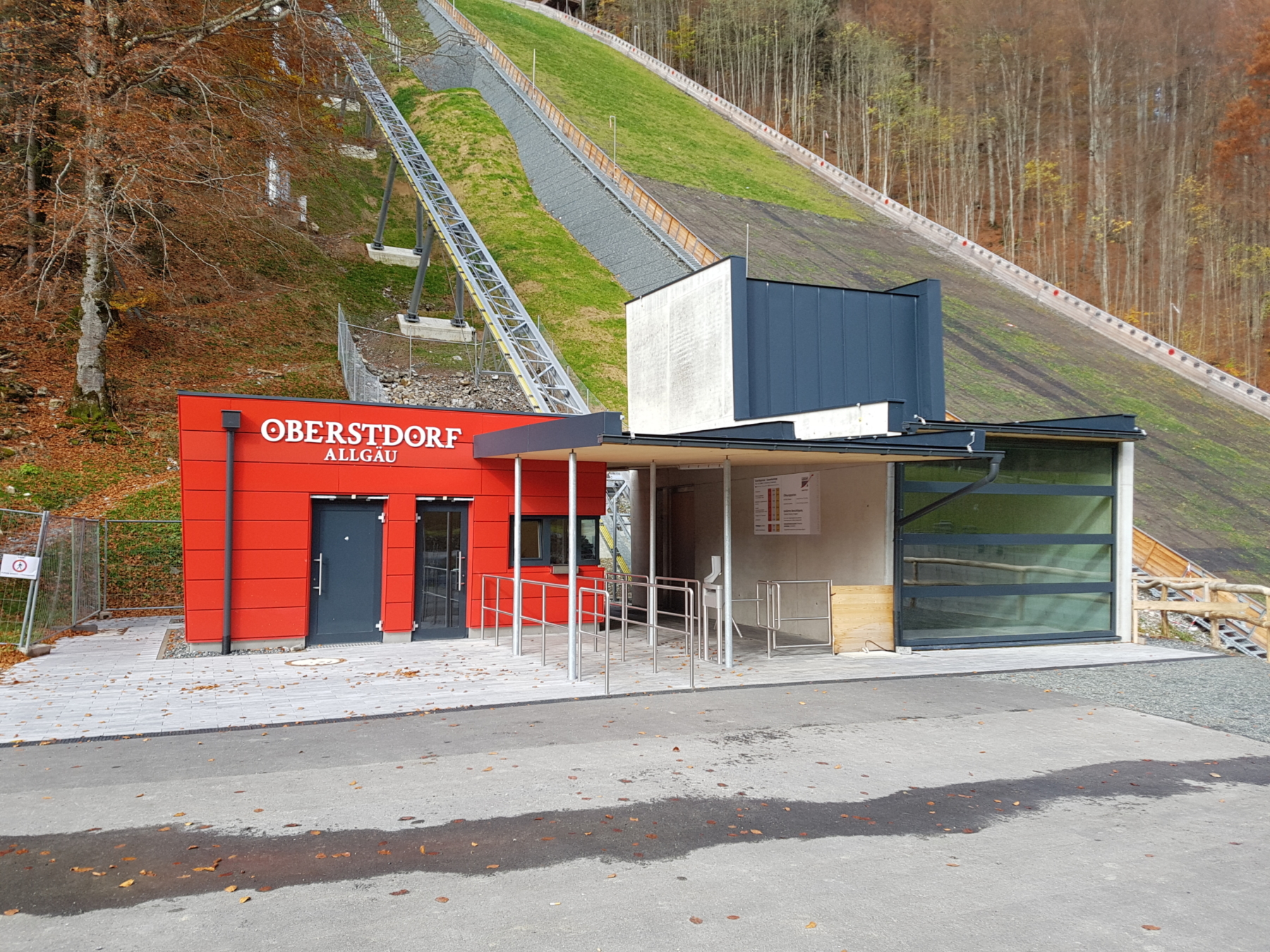

Oberstdorf HKS 00 900x675 - Heini Klopfer Ski-Flying Jump, DE

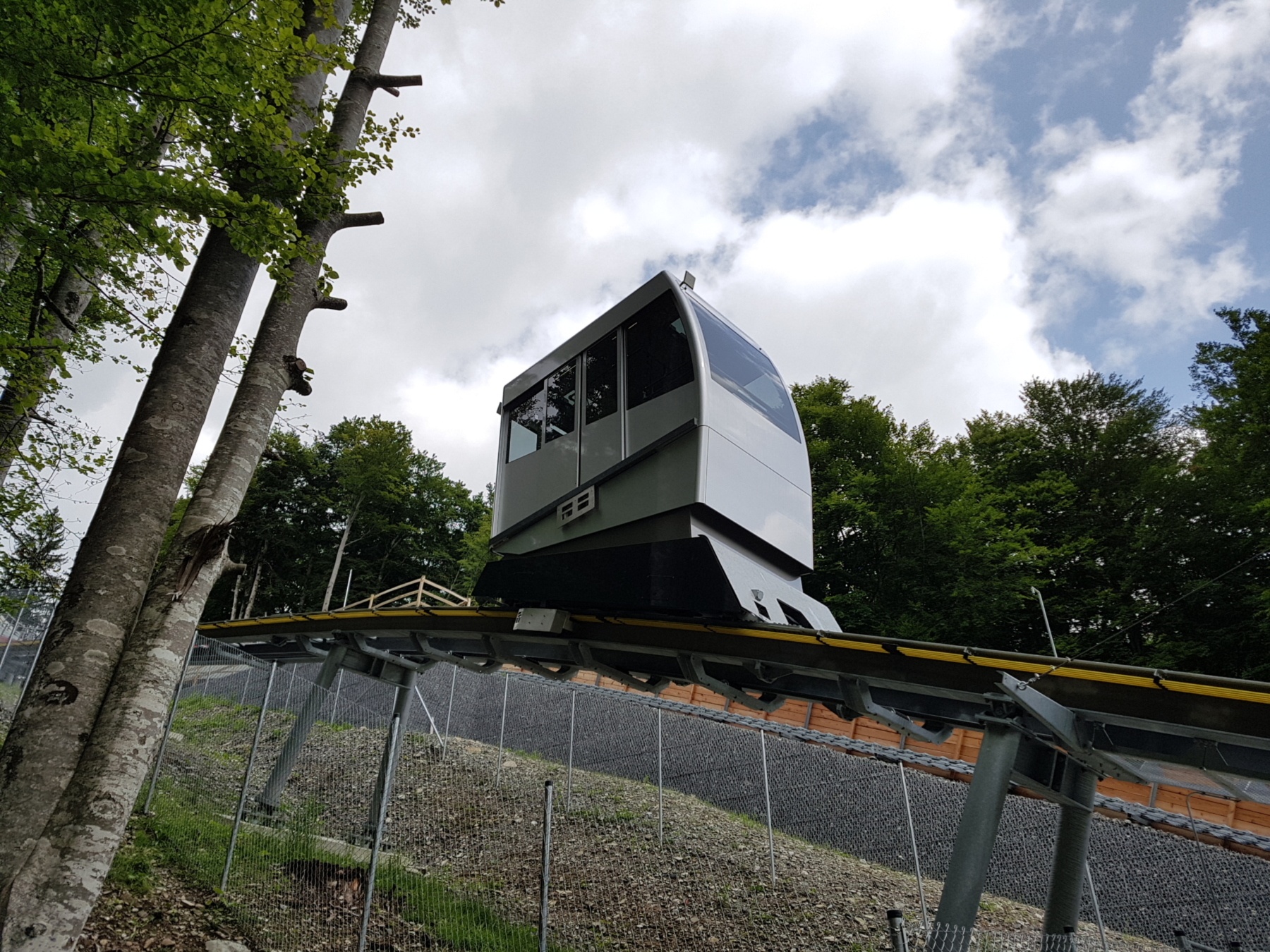

Oberstdorf HKS 02 900x675 - Heini Klopfer Ski-Flying Jump, DE

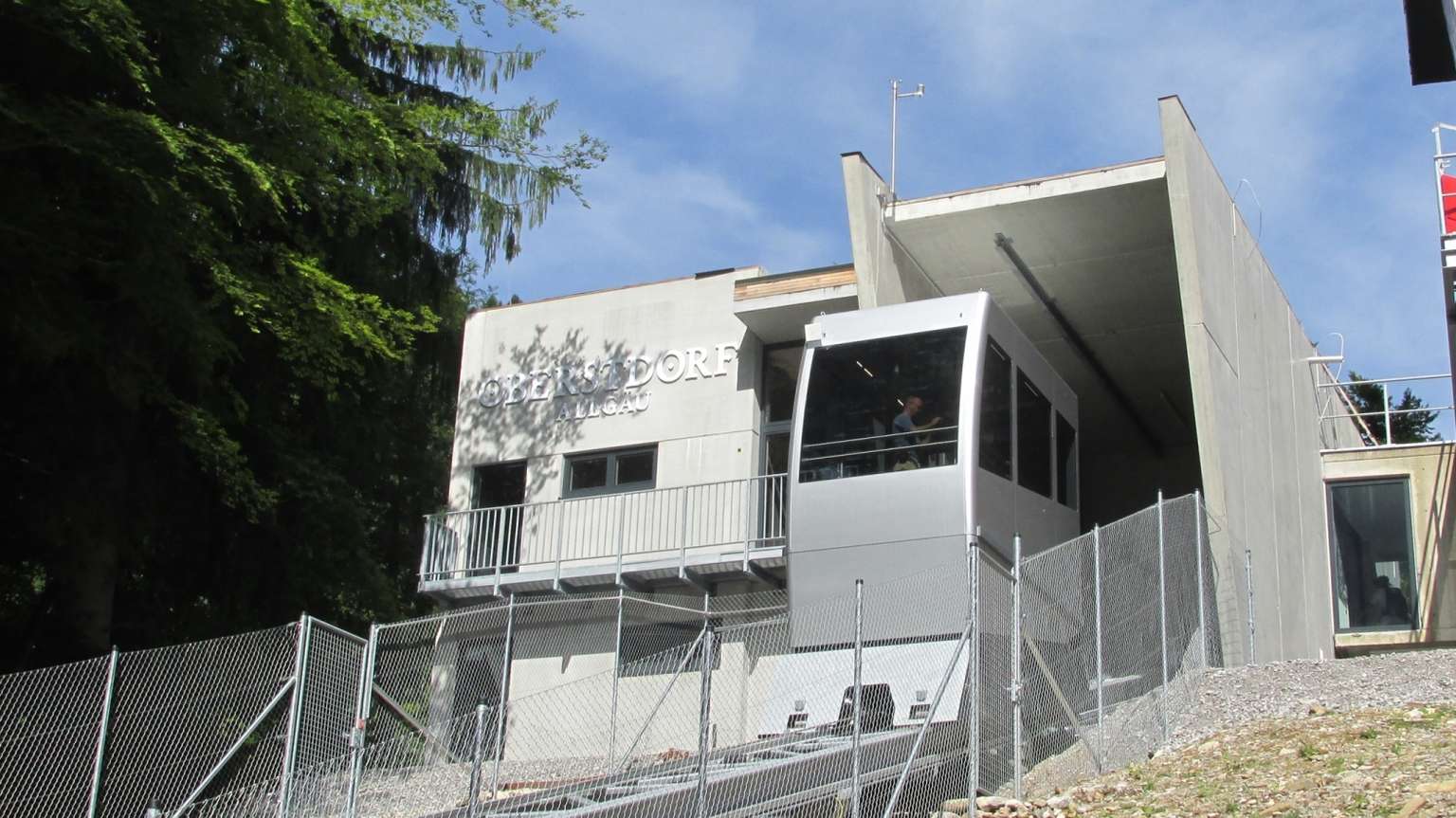

Oberstdorf HKS 01 900x506 - Heini Klopfer Ski-Flying Jump, DE

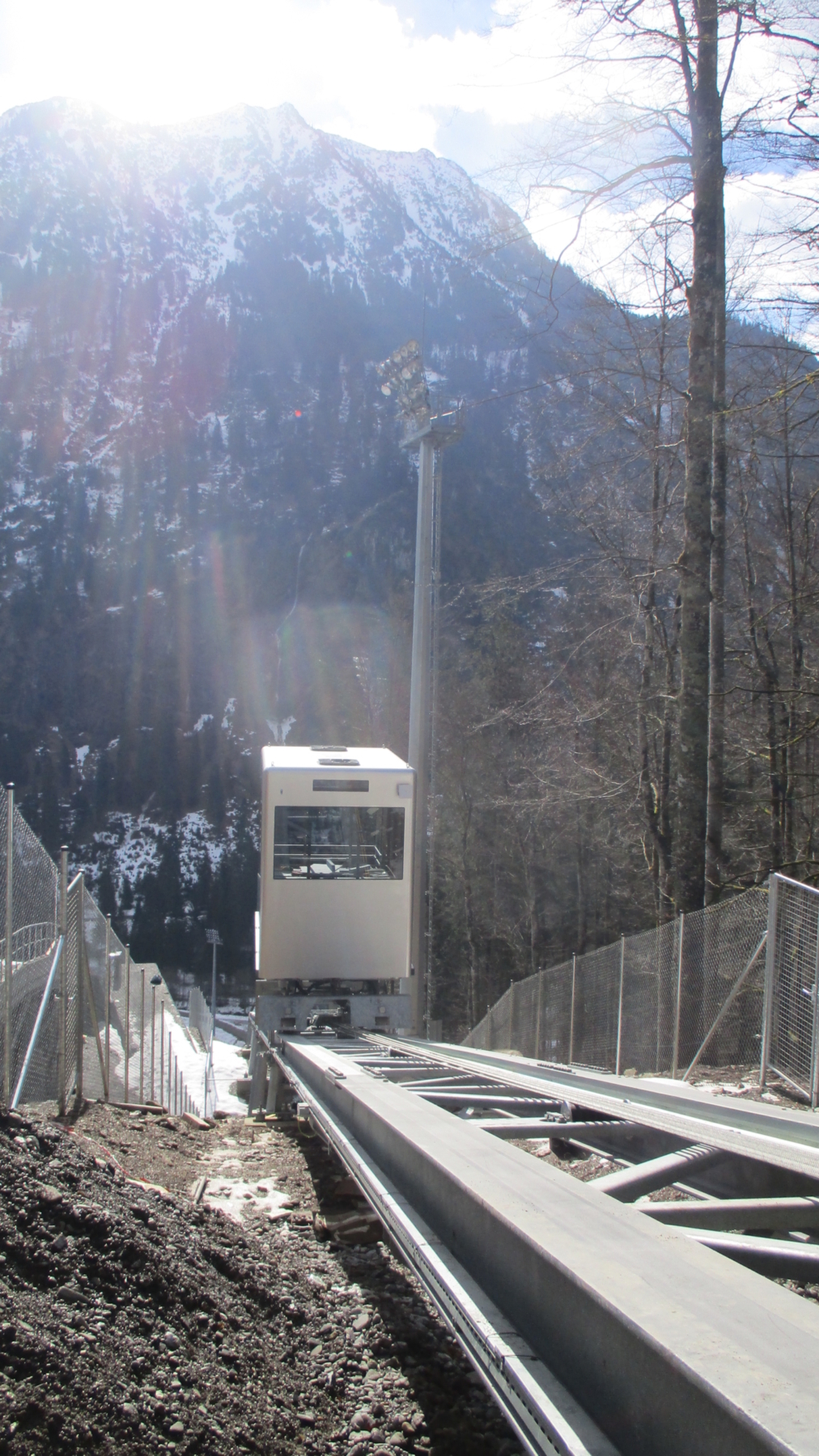

Oberstdorf HKS 03 506x900 - Heini Klopfer Ski-Flying Jump, DE
